Water tank coating systems protect critical infrastructure from corrosion, ultraviolet (UV) exposure, moisture, salt and chemicals while helping communities preserve a clean, attractive appearance. The most effective systems combine proper surface preparation, a corrosion-resistant primer, an intermediate coat and a durable topcoat selected for the tank substrate and service environment.
For exterior water tank applications, fluoropolymer topcoats based on LUMIFLON® fluoroethylene vinyl ether (FEVE) resin provide long-term weatherability, color retention and gloss retention. Their extended service life can reduce repainting cycles, maintenance disruption and total life-cycle costs compared with conventional coating technologies.
What Are Water Tank Coating Systems?
A water tank coating system is a layered protective finish engineered to shield the tank substrate and maintain its appearance over time. On a typical steel tank exterior, the system may include a zinc-rich primer, an epoxy intermediate coat and a weather-resistant finish coat. Each layer performs a distinct function: the primer supports corrosion protection, the intermediate coat adds barrier protection and film build, and the topcoat resists weathering while providing the specified color and gloss.
Choosing a coating for water tanks requires more than selecting a paint color. Owners and specifiers should evaluate the substrate, exposure conditions, expected service life, application method, maintenance access, environmental requirements and long-term cost. Because interior surfaces that contact potable water have separate immersion-service and regulatory requirements, this blog post focuses primarily on exterior water tank coating systems.
Photography ©Shannon Richardson
Why Water Tanks Need High-Performance Exterior Coatings
Water towers and storage tanks remain exposed to sun, wind, rain, temperature changes, airborne contaminants and, in some locations, salt or aggressive industrial environments. As a topcoat degrades, chalks, fades or loses thickness, water and corrosive agents have a greater opportunity to reach the underlying layers and substrate.
Repainting a water tank is also a complex infrastructure project. It can require blasting, containment, staging, specialized labor and operational coordination. A topcoat that remains protective and attractive longer can postpone these disruptive activities and spread project costs over a longer service period.
How FEVE Resin Improves Water Tank Coating Performance
LUMIFLON resins use an alternating fluoroethylene vinyl ether structure. The carbon-fluorine bonds in the fluoroethylene segments contribute weatherability, chemical resistance and durability. The vinyl ether segments provide solubility, gloss, pigment compatibility, adhesion and crosslinking capability. This combination allows formulators to create fluoropolymer coatings that can be field- or shop-applied using conventional coating equipment.
In water tank coating systems, an FEVE-based topcoat offers several performance advantages:
- Long-term resistance to UV-driven fading, chalking and gloss loss.
- Low permeability to oxygen, water and chloride, helping limit the conditions that initiate corrosion.
- Retention of flexibility and toughness after years of outdoor exposure.
- A broad range of crisp colors and gloss levels for community branding, murals and landmark designs.
- Compatibility with ambient- or elevated-temperature curing for field and shop applications.
- Excellent recoatability and no unusual surface-preparation requirements compared with conventional coating systems.
Learn more about LUMIFLON FEVE resins for water tank coatings and their role in durable exterior finishes.
Corrosion Protection Begins With the Complete System
The finish coat is only one part of corrosion control. Surface preparation and the correct primer and intermediate coat remain essential. LUMIFLON topcoats protectsthe epoxy middle coat and zinc-rich primer beneath it. By retaining thickness and resisting weathering, the topcoat helps prevent oxygen, moisture and chloride from penetrating the system and degrading the primer.
LUMIFLON-based coatings have passed ISO 12944-9 CX, Im4 and C5 corrosion tests. Actual performance depends on the complete formulation, specification, surface preparation, film thickness, workmanship and exposure environment, so coating manufacturers and qualified professionals should determine the appropriate system for each project.
Long-Term Color and Gloss Preserve Community Identity

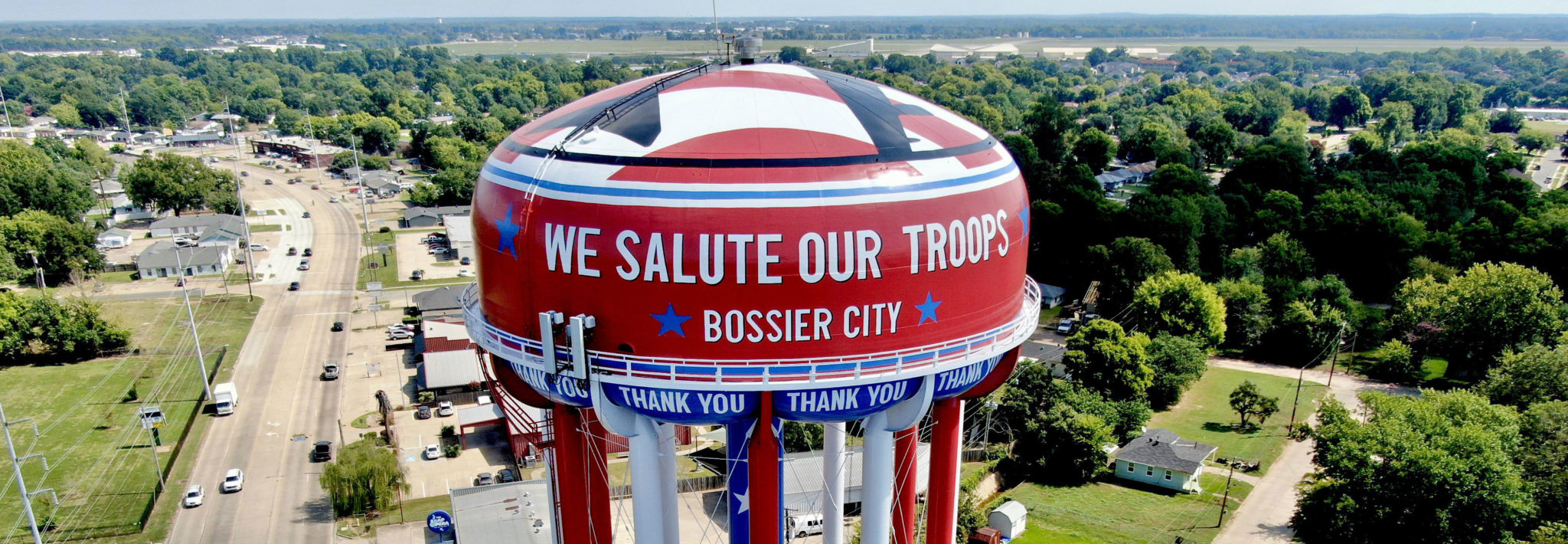

A water tower is often both working infrastructure and a highly visible landmark. Many communities use tanks to display local logos, historical themes, murals or intricate multicolor designs. Premature fading or chalking can make even a structurally sound tank look neglected.
FEVE-based topcoats are available in a wide color range and gloss levels from low to high. Their UV resistance helps maintain the intended appearance for decades. LUMIFLON has been used successfully in applications ranging from the rose-covered tower in Rosemont, Illinois, to an award-winning wildlife mural in Ann Arbor, Michigan, and the restored Ear of Corn tower in Rochester, Minnesota. These projects illustrate why long-term color and gloss retention matter when repainting is difficult and the tank serves as a community symbol.
How Long Do Water Tank Coatings Last?
The service life of water tank coating systems varies with coating chemistry, substrate condition, surface preparation, film thickness, workmanship, climate and maintenance. AGC reports that LUMIFLON-based coatings can maintain color and gloss on water towers for approximately 20 to 60 years, with an expected FEVE topcoat life of 30 to 60-plus years in appropriate systems.
Accelerated weathering results showed coatings made with LUMIFLON delivering five times the lifespan of acrylic urethanes and more than eight times the lifespan of alkyd coatings. These figures are comparative performance indicators, not a warranty for every project. The coating manufacturer’s specification and project-specific inspection plan should govern expected service life.
Life-Cycle Cost Matters More Than Initial Paint Price
A high-performance topcoat may cost more initially, but the topcoat is only one component of the applied project cost. Containment, blasting, staging, labor, downtime and environmental controls can make each repainting cycle expensive. Extending the interval between repainting projects can therefore create substantial long-term value.
FEVE-based topcoats may have an initial applied cost about 5% to 10% higher than a standard polyurethane topcoat, yet its longer service life can avoid two or three repainting cycles over a 30- to 60-year period. Based on numerous projects, the life-cycle cost of LUMIFLON coatings at approximately 40% to 80% of polyurethane coatings. LUMIFLON systems have a higher initial cost, but a lower annualized cost than chlorinated rubber because of its longer coating life.
Longer Coating Life Can Support Sustainability Goals
Durability can reduce the environmental burden associated with repeated coating removal, material production, transportation, application equipment and volatile organic compound emissions. LUMIFLON is available in solution, solid, water-based and powder resin grades, giving formulators options for different application and environmental requirements. Some solid, powder and emulsion grades contain zero VOCs or can be formulated below 50 g/L VOC.
FEVE-based powder coating systems can reduce carbon footprint by 23% to 46% compared with a PVDF liquid coating, depending on the formulations compared. Because carbon impact varies by resin, formulation, application and project scope, sustainability decisions should be based on the complete specified system rather than resin chemistry alone.
What to Consider When Painting a Water Tank
Before specifying paint for a water tank exterior, project teams should answer the following questions:
- What is the substrate—steel, aluminum, fiberglass or concrete—and what is its current condition?
- Which corrosion category, weather conditions and chemical exposures apply?
- What surface-preparation standard and containment plan will be required?
- How many years of color, gloss and protective performance are expected?
- Will the coating be applied in the field or shop, and under what curing conditions?
- Are VOC limits, sustainability objectives or local air-quality rules part of the specification?
- What are the full life-cycle costs, including access, downtime, staging and future repainting?
- Does the selected manufacturer provide a complete compatible system and project-specific guidance?
The best choice is not simply the least expensive gallon of paint. It is the water tank coating system that meets the project’s technical, aesthetic, application and life-cycle requirements.
Build a Longer-Lasting Water Tank Coating System
When a water tank must withstand decades of sunlight, moisture and environmental exposure, topcoat durability has a direct effect on appearance, corrosion protection, maintenance frequency and life-cycle cost. LUMIFLON FEVE resin gives coating formulators the weatherability, color flexibility, recoatability and application versatility needed for high-performance water tank exteriors.
Explore LUMIFLON solutions for water tank coating systems or contact AGC Chemicals Americas to discuss the right resin grade for your formulation.
Frequently Asked Questions About Water Tank Coating Systems
What is the best coating for a water tank exterior?
The best coating depends on the substrate, environment, surface preparation and service-life goals. For long-term exterior weatherability, an FEVE fluoropolymer topcoat over a compatible primer and intermediate coat can provide strong UV resistance, corrosion protection, and color and gloss retention.
Is FEVE coating suitable for potable-water tank interiors?
This article addresses primarily exterior applications. Any interior coating in contact with potable water must be specifically formulated, tested and approved for immersion and drinking-water service under the applicable regulations and project specification.
Can LUMIFLON-based coatings be applied in the field?
Yes. FEVE-based coatings can cure at ambient or elevated temperatures and may be field- or shop-applied, depending on the coating formulation. Standard brush, roller or spray equipment may be used when permitted by the coating manufacturer.
Do FEVE coatings require special surface preparation?
No unusual surface preparation is required solely because a topcoat contains FEVE resin. However, the substrate and complete coating system must receive the surface preparation specified by the coating manufacturer and project engineer.
Why are color and gloss retention important on water towers?
They preserve the tank’s intended appearance and community identity while reducing the need for cosmetic repainting. UV-resistant topcoats also help protect the layers beneath them from weathering.
How can a more expensive topcoat reduce total project cost?
The initial topcoat price is small compared with the combined cost of blasting, containment, staging, labor, downtime and repeated repainting. A longer-lasting topcoat can reduce the number of maintenance cycles over the tank’s service life.
